Lynn Hardware 178



Lynn Hardware Commercial Door Closers

Whether at a school, store, condo, healthcare facility, factory, office or any other building, people are streaming in and out all day. You need a reliable, durable method of controlling security and maintaining the building’s doorway, especially where there is increased usage. ANSI A156.4 tested and certified to meet your needs, the Lynn Hardware Grade 1 Door Closers are designed for heavy duty commercial applications, High Abuse doors and Extreme Temperature Areas. Grade 1 is the highest standard achievable for Door Closers, and this one has actually surpassed a test to 2 million + cycles.

Knowing that function and smoothness is the most important function of your door, this door closer furnishes complete freedom of movement into and out of your space. The commercial-grade arm won’t interfere when opening and closing the door. You can easily adjust this closer to allow an easy entrance and exit, letting you enjoy automatic, hands-free closing and latching. The DC9016 Commercial door closer is UL listed, functioning properly even in cold climates (up to -40°F) or hot climates (up to 150°F) and is listed for a 3 hour fire rated opening.

Features

  1. SPRING FORWARD, EASE BACK: The commercial-grade arm won’t interfere with opening while closing doors slowly enough to allow graceful entrance and exit
  2. GENTLE, HANDS-FREE CLOSING: Let the door do the work. Enjoy automatic closing and latching, maintaining quiet and security
  3. ADJUSTABLE TO YOUR NEEDS: Let customers go their own pace. You get 6 levels of closing power to suit any level of traffic
  4. CERTIFIABLY RELIABLE: ANSI 156.4 – Grade 1 is the highest standard achievable for Door Closers. This one has actually surpassed a test to 2 million + cycle
  5. FITS WHERE YOU NEED IT: The surface mount design and tri pack options (standard, top jamb and parallel arm mounting options), allow you to install this over any high-traffic area while providing complete control
Lynn Hardware 179

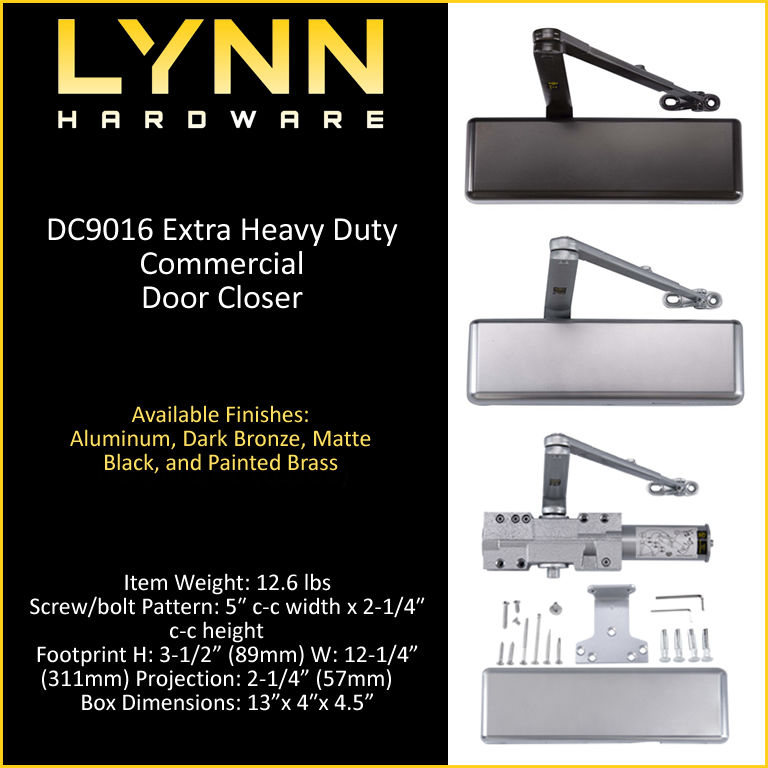

DC9016 Extra Heavy Duty Commercial
Door Closer

• Traditional American style heavy duty closer for commercial doors
• Precise cast iron body & forged steel arm, hold open arm optional
• 3 Valves: Adjustable closing speed, latching speed & backcheck
• Adjustable Backcheck & Delayed Action come standard with our model, giving more control of your door, far exceeding the competing brands
• Non-handed installation
• Brackets and Soffit Plate to allow Regular-Top Jamb-Parallel Arm Installation.
• Adjustable spring force #1-6
• ADA Compliant Door Closer
• ANSI 156.4 certification 2 millions life cycle
• UL certification 3 hours fire rating

Compare to: LCN4040xp, LCN4041, LCN 4040, Lawrence LH8016, Norton 9500, Sargent 351/281, Yale 4400, Corbin-Rosswin DC8000, Hager 5100, Dorma 8916, Stanley D4550, Falcon SC70.SC71, Cal-Royal CR441, INOX DC9016

Lynn Hardware 180

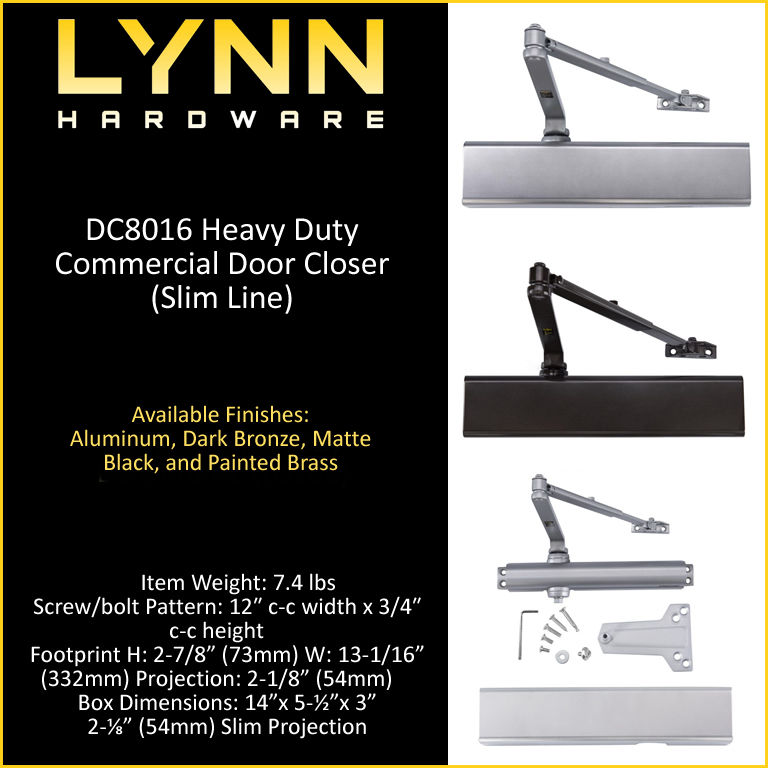

DC8016 Heavy Duty Commercial
Door Closer (Slim Line)

•Traditional American style heavy duty closer for commercial doors
•Precise cast aluminum body & forged steel arm, hold open arm optional
•Adjustable closing & latching speed
•Brackets and Soffit Plate to allow Regular-Top Jamb-Parallel Arm Installation.
•3 Valves: Adjustable closing speed, latching speed & backcheck
•Adjustable Backcheck & Delayed Action come standard with our model, giving more control of your door, far exceeding the competing brands
•Non-handed installation
•Adjustable spring force #1-6
•ADA Compliant Door Closer
•ANSI 156.4 certification 2 millions life cycle
•UL certification 3 hours fire rating

Compare to: Norton 8501, LCN 1461, Lawrence LH816, Yale 3301, Corbin-Rosswin DC3210, Hager 5200, Dorma 8600, Stanley D3551, Arrow 5016N

Lynn Hardware 181

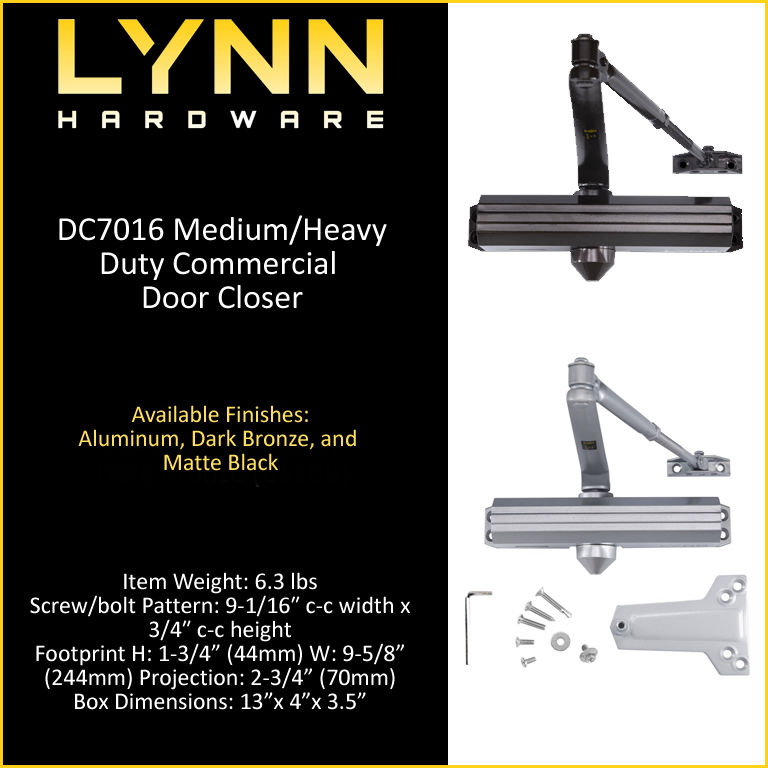

DC7016 Medium/Heavy Duty
Commercial Door Closer

•Traditional American style heavy duty closer for commercial doors
•Precise cast aluminum body & forged steel arm, hold open arm optional
•3 Valves: Adjustable closing speed, latching speed & backcheck
•Adjustable backcheck valve come standard with our model, giving more control over the competition
•Brackets and Soffit Plate to allow Regular-Top Jamb-Parallel Arm Installation.
•Non-handed installation
•Adjustable spring force #1-6
•ANSI 156.4 certification 2 millions life cycle
•ADA Compliant Door Closer
•UL certification 3 hours fire rating

Compare to: Norton 1600 series, LCN 1260, Sargent 1130, Dorma 7400 Series, Yale 50BC series, Arrow 900N series, Stanley D1650, Lawrence LH5016

Lynn Hardware 182

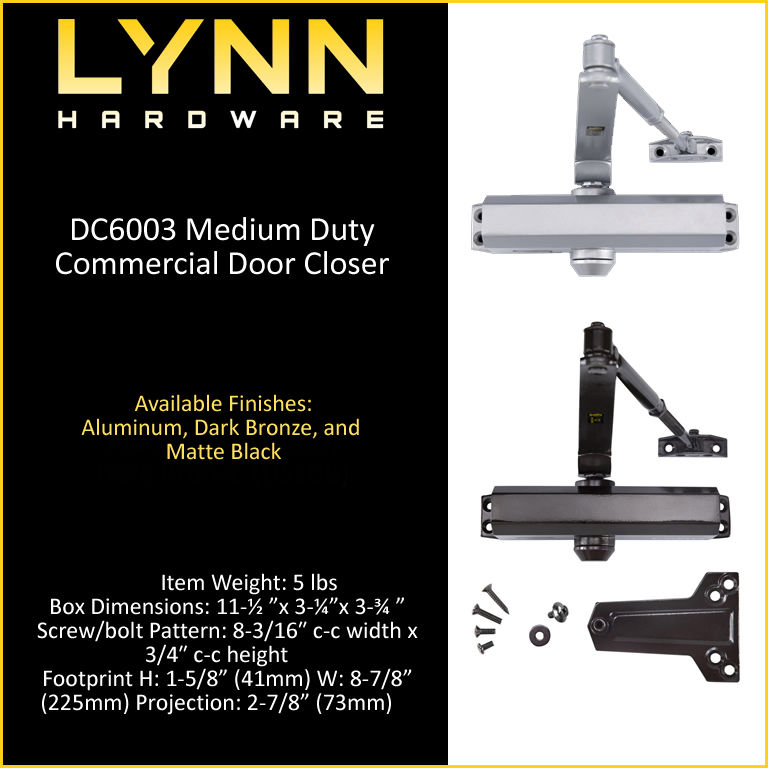

DC6003 Medium Duty Commercial
Door Closer

• Economical Model for Residential and Light Commercial Doors
• Precise cast aluminum body & forged steel arm, hold open arm optional
• 3 Valves: Adjustable closing speed, latching speed & backcheck
• Adjustable back check come standard with our model, giving more control over the competition
• Non-handed installation
• Brackets and Soffit Plate to allow Regular-Top Jamb-Parallel Arm Installation.
• Fixed Spring Force #3
• Compare to Grade 2 Door Closers
• UL 228 Certification
• UL certification 3 hours fire rating

Compare to: Cal-Royal 720 and 730, C.R. Laurence DC53 & DC52, Lawrence LH503 & LH534 and EZ Set DO 502, 503 & 504

Lynn Hardware 183

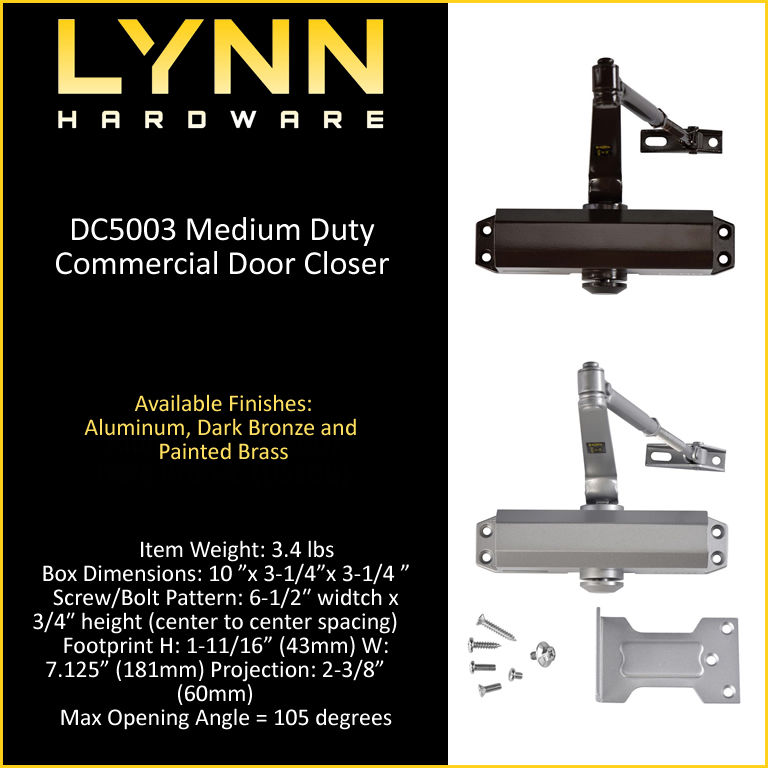

DC5003 Medium Duty Commercial
Door Closer

• Economical Model for Residential and Light Commercial Doors
• Precise cast aluminum body & forged steel arm, hold open arm optional
• 3 Valves: Adjustable closing speed, latching speed & backcheck
• Adjustable back check come standard with our model, giving more control over the competition
• Non-handed installation
• Brackets and Soffit Plate to allow Regular-Top Jamb-Parallel Arm Installation.
• Fixed Spring Force #3
• Compare to Grade 2 Door Closers
• UL 228 Certification
• UL certification 3 hours fire rating

Compare to: Dorex 751, C.R. Laurence DC51, Lawrence LH303
